Architecture

Qlockify is deployed as a containerized web application behind Nginx.

Runtime Flow

High-level request flow:

• Browser requests are served through Nginx.
• Static frontend assets are served by the frontend container.
• API and admin requests are proxied to the Django backend.
• Django stores relational data in PostgreSQL.
• Redis is used for cache, async job brokering, and background coordination.
• Celery workers process async jobs.
• Celery Beat schedules recurring jobs such as demo cleanup.

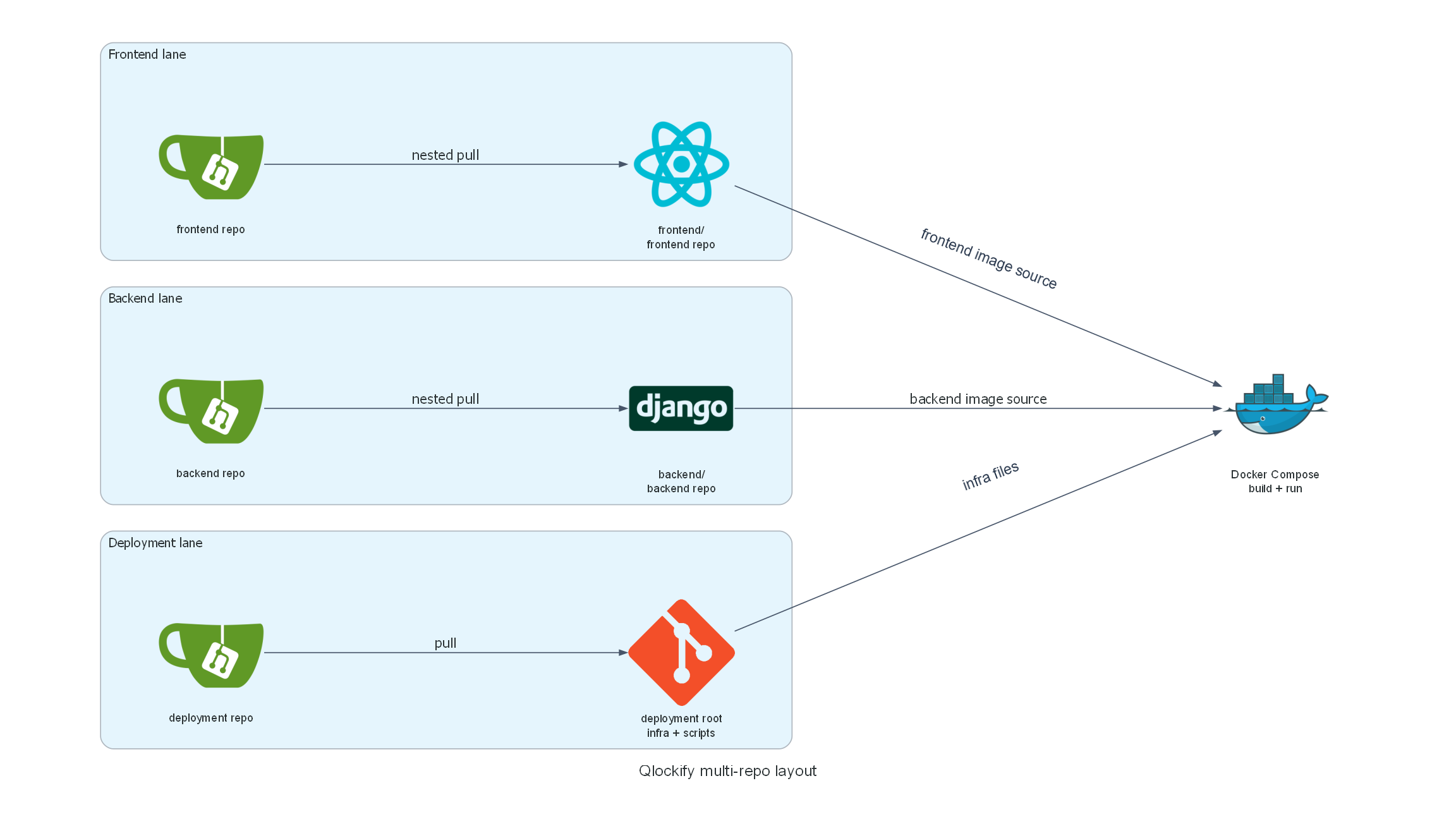

Multi-Repo Setup

The actual source uses separate private repositories for:

• backend application code
• frontend application code
• deployment/orchestration configuration

This keeps application changes, frontend changes, and production operations changes isolated from each other. The public showcase repository does not include those private repositories or their deployment files.

Public Safety Boundary

This repository intentionally excludes:

• source code
• database migrations and schemas
• Docker Compose and Nginx configuration
• CI/CD workflows
• backup scripts
• environment variables
• private repository URLs with credentials
• real production logs or user data
