Spatial Image Enhancer Pro

Production-grade public SPA for spatial-domain image enhancement using Django REST Framework, OpenCV, NumPy, React, Tailwind CSS, Celery, Redis, PostgreSQL, Docker Compose, and Caddy.

Local Development

Backend:

cd backend
python -m venv .venv
.venv\Scripts\activate
copy .env.sample .env
pip install -r requirements.txt
python manage.py migrate
python manage.py runserver

Frontend:

cd frontend
copy .env.sample .env
npm install
npm run dev

Open http://localhost:5173. The frontend .env uses VITE_API_BASE=http://localhost:8000, and the backend .env allows that origin via CORS/CSRF settings.

Docker

copy .env.example .env
copy backend\.env.sample backend\.env
docker compose up --build

Caddy serves the SPA and proxies /api/* and /media/*. Set CADDY_DOMAIN, DJANGO_ALLOWED_HOSTS, DJANGO_CSRF_TRUSTED_ORIGINS, CORS_ALLOWED_ORIGINS, and a strong DJANGO_SECRET_KEY before production deployment.

For production, use .env.sample as the root Compose template and backend/.env.production.sample as the backend-only template.

Backend Structure

The Django app follows the HackSoftware Django Styleguide pattern:

• API views validate request input and return responses.
• processing/services.py contains business workflows and writes.
• processing/selectors.py contains database fetch helpers.
• Settings are environment-driven through backend/.env.

Algorithms

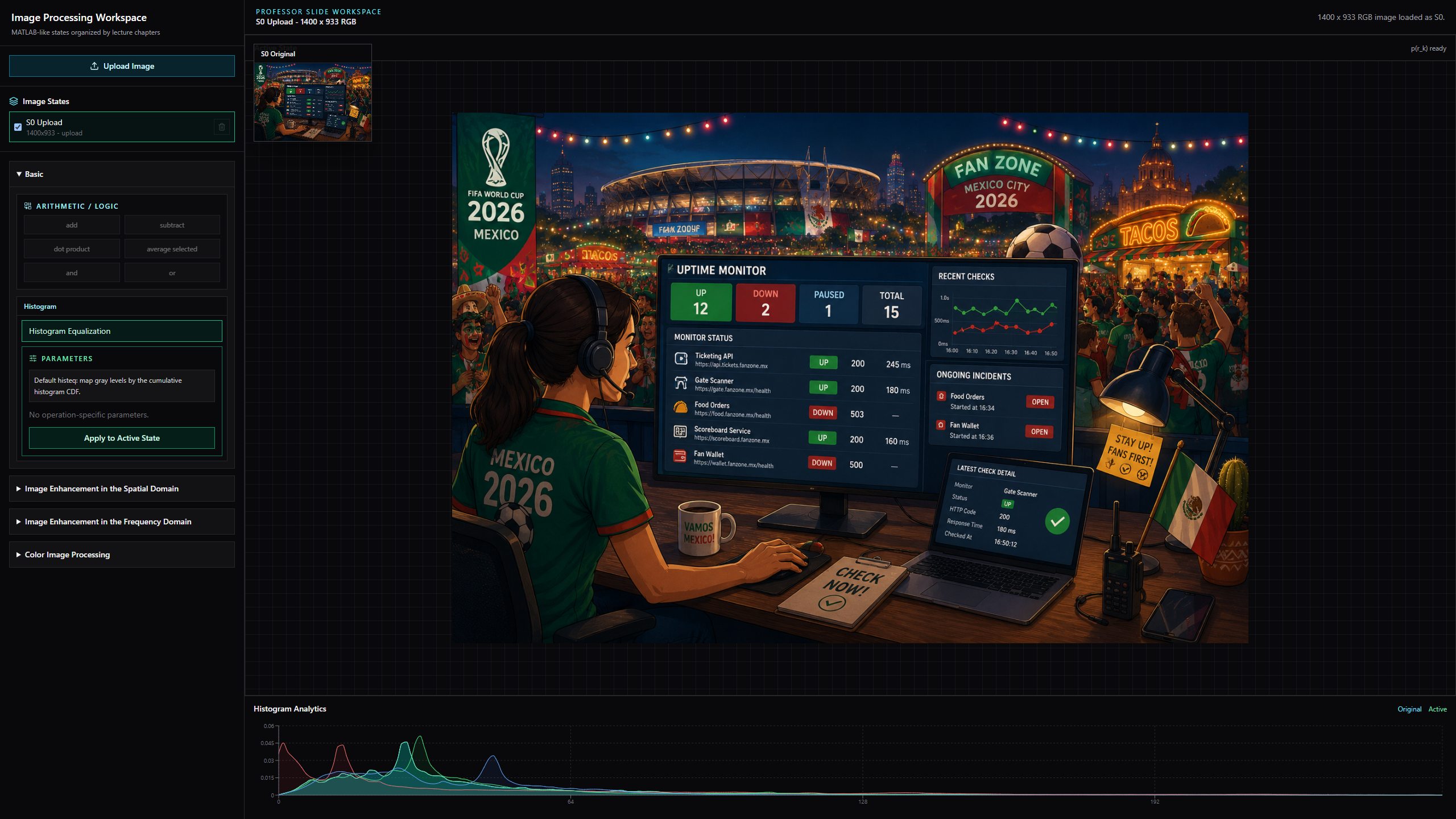

The app is organized as a small MATLAB-like image workspace. Each operation creates a new image state, so you can compare results, keep useful steps, and delete unwanted states.

Basic Workspace

• Histogram view shows how pixel values are distributed. For gray images it uses one intensity histogram; for RGB images it also shows R, G, and B channels. Formula: p(r_k) = n_k / n.
• Histogram equalization improves contrast by spreading gray levels using the cumulative histogram. Formula: s_k = round(255 * CDF(r_k)).
• Add images combines registered images by summing pixels and clipping to display range. Formula: g = f1 + f2.
• Subtract images highlights differences between registered images. Formula: g = normalize(|f1 - f2|).
• Dot product multiplies registered image pixels element by element. Formula: g = normalize(f1 * f2).
• Average K images reduces independent noise by averaging registered states. Formula: g = (1/K) * sum(f_i).

Chapter 3: Spatial Domain

• Negative inverts intensities. Formula: s = 255 - r.
• Log transform expands darker values more than brighter values. Formula: s = c log(1 + r).
• Power-law / gamma changes brightness and contrast with an exponent. Formula: s = c r^gamma.
• Gray-level dynamic range stretches a selected intensity range to the full display range. Formula: [low, high] -> [0, 255].
• Gray-level slicing highlights pixels inside a chosen range. Formula: highlight where A <= r <= B.
• Bit-plane slicing displays one binary bit of each gray value. Formula: bit_k(r).
• Noise filter adds test noise. Gaussian noise uses g = f + n; salt-and-pepper noise randomly sets pixels to 0 or 255.
• Average N noisy copies generates N independent Gaussian-noisy copies of the current image and averages them into one result. Formula: result = (1/N) * sum_i(f + n_i).
• Periodic noise adds a repeating sinusoidal row and column pattern. Formula: g(x,y) = f(x,y) + A sin(2*pi*y/T) + A sin(2*pi*x/T).
• Average / box filter smooths an image with a uniform mask. Formula: g = imfilter(f, ones(K,K) / K^2).
• Weighted average filter smooths with the slide mask 1/16 * [[1,2,1],[2,4,2],[1,2,1]].
• Gaussian filter smooths using a Gaussian mask controlled by size K and variance Q. Formula: G(x,y) = exp(-(x^2+y^2)/(2Q)).
• Median filter replaces each pixel with the neighborhood median, useful for salt-and-pepper noise. Formula: g(x,y) = median(S_xy).
• Max filter replaces each pixel with the local maximum. Formula: g(x,y) = max(S_xy).
• Min filter replaces each pixel with the local minimum. Formula: g(x,y) = min(S_xy).
• Laplacian sharpening masks use the taught cross or diagonal sharpening masks to emphasize fine detail. Formula: g = imfilter(f, selected mask).
• Gradient operators use Sobel or Roberts mask pairs for edges. Formula: g = |imfilter(f,Gx)| + |imfilter(f,Gy)|.
• High-boost / edge emphasis sharpens by subtracting a blurred image from an amplified original. Formula: f_hb = A f - blurred(f), where A >= 1.

Chapter 4: Frequency Domain

• FFT/DFT spectrum view shows magnitude, log magnitude, or phase of the image in the frequency domain. Formula: F(u,v) = DFT{f(x,y)}. Apply it to a periodic-noisy state with log_magnitude to see the noise peaks.
• Inverse FFT reconstruction applies FFT then inverse FFT without filtering to demonstrate reconstruction. Formula: f = real(ifft2(ifftshift(fftshift(fft2(image))))).

Chapter 6: RGB Color Processing

• Convert to grayscale uses configurable RGB weights, matching MATLAB-style luminance by default. Formula: gray = 0.299R + 0.587G + 0.114B.
• RGB channel view displays one color channel as grayscale. Formula: show R, G, or B.

API

• POST /api/images/
• POST /api/process/
• POST /api/batch/
• GET /api/jobs/{job_id}/

Images are stored as ephemeral sessions and removed by the cleanup task after the configured TTL.
